Fully Automatic High-Accuracy PU Edge Rock-wool Sandwich Panel Production Line with 380V 50Hz 3phases

Fully Automatic High-Accuracy PU Edge Rock-wool Sandwich Panel Production Line with 380V 50Hz 3phases

Marka Adı:	Greenson
Moq:	1
fiyat:	$700000-$800000
Ödeme Şartları:	L/C,T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Hebei

Ürün adı:

İnşaat İçin Yüksek Hassasiyetli Tam Otomatik Motor Tahrikli PU Kenar Taşyünü Sandviç Panel

Anahtar kelime:

Çift Bant Sistemli İnşaat için PU Kenar Taşyünü Sandviç Panel

Renk:

Müşterinin Gereksinimi

Özellik:

Tam Otomatik

Ambalaj bilgileri:

Plastik Film

Sevkiyat limanı:

TianJin

çekirdek bileşenler:

PLC, Motor, Rulman, Motor, Pompa

önemli satış noktaları:

Kullanımı Kolay

Başvuru:

Çatı ve Duvar

Gerilim:

380V 50Hz 3 faz (ihtiyaca göre değiştirilebilir)

Ürün Tanımı

High-Accuracy Fully Automatic Engine-Driven PU Edge Rock-wool Sandwich Panel For Construction

Product Overview

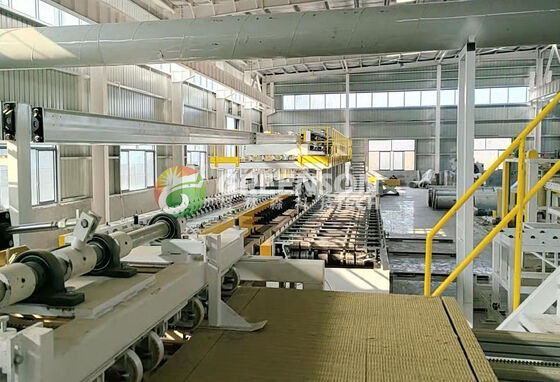

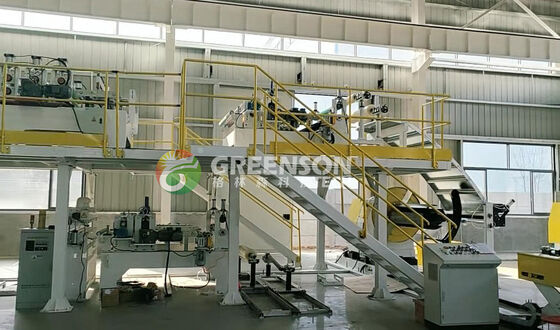

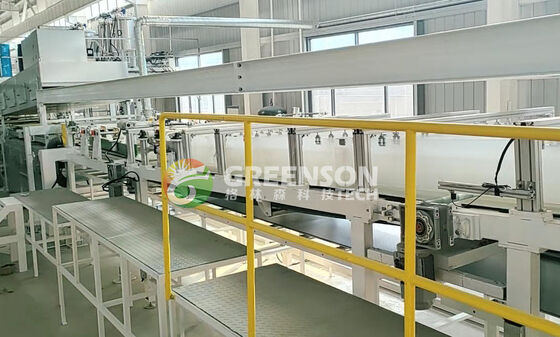

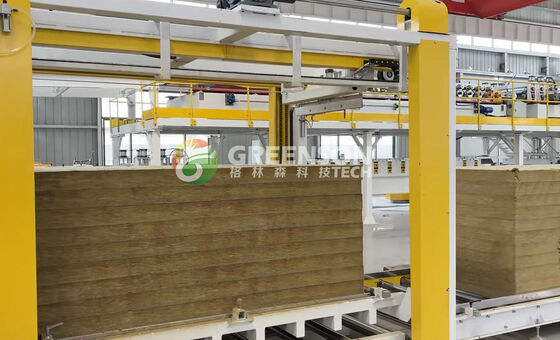

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Using a PLC numerical control system and a human-machine interface, the entire process of loading, gluing, laminating, pressing, cutting to length, and finished product palletizing is automated. It flexibly adapts to multi-specification and multi-core material production, offering high precision, low waste, minimal labor, stable operation, and low failure rates.

The entire line has a compact layout, is energy-saving and noise-reducing, and can quickly mass-produce high-quality composite boards, sandwich panels, and integrated insulation and decorative panels. It comprehensively enhances production capacity and product competitiveness, making it an optimal choice of equipment for construction material enterprises seeking expansion and upgrading.

Production Process

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 Mpa
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 × 15000 × 6000 mm (Length × Width × Height)
