High Speed Energy Saving Fully Automatic Rock Wool Sandwich Panel Making Machine for Building Applications

High Speed Energy Saving Fully Automatic Rock Wool Sandwich Panel Making Machine for Building Applications

Marka Adı:	Greenson
Moq:	1
fiyat:	$790000
Ödeme Şartları:	L/C,T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Hebei

Ürün adı:

Satılık Yüksek Hızlı Enerji Tasarruflu Taş Yünü Sandviç Panel Yapma Makinesi

Anahtar kelime:

Yanmaz taşyünü panel üretim hattı

Başvuru:

Bina

Renk:

Müşterinin Gereksinimi

OEM:

Evet

Özellik:

Tam Otomatik

Ambalaj bilgileri:

Plastik Film

Sevkiyat limanı:

TianJin

çekirdek bileşenler:

PLC, Motor, Rulman, Motor, Pompa

önemli satış noktaları:

Kullanımı Kolay

Ürün Tanımı

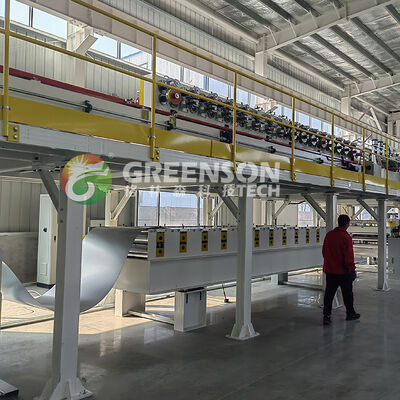

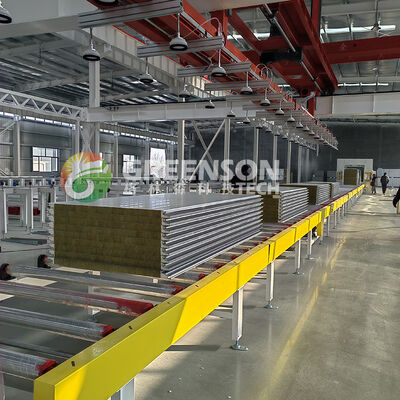

High Speed Energy Saving Rock Wool Sandwich Panel Making Machine For Sale

Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Production Process

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types

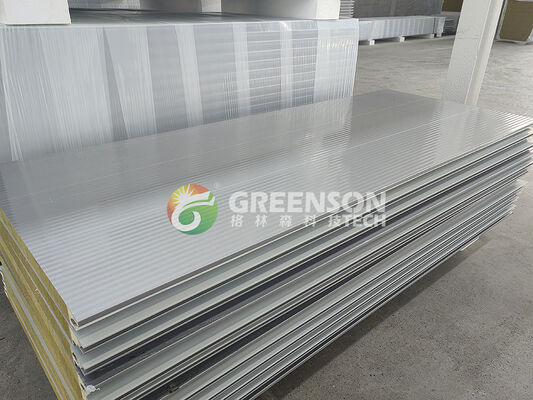

Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material	Type: Color steel sheet; Galvanized sheet; Aluminum sheet Thickness: 0.3-0.8 mm Width: ≤1250 Mpa
Suitable Panel Size	Length: 2000-18000 mm Width: 500-1200 mm Thickness: 30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 * 15000 * 6000 mm (Length * Width * Height)
