Fully Automatic Plasterboard Laminating Machine with 1300mm Effective Lamination Width and 3-15m/min Adjustable Speed for Gypsum Ceiling Tile Production

Fully Automatic Plasterboard Laminating Machine with 1300mm Effective Lamination Width and 3-15m/min Adjustable Speed for Gypsum Ceiling Tile Production

Marka Adı:	LVJOE
Model Numarası:	FM1300
Moq:	1 satır
fiyat:	US $20000-200000
Ödeme Şartları:	L/C,T/T
Tedarik Yeteneği:	Yılda 10 Satır

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Hebei, Çin

Sertifika:

ISO,CE

Uygulama:

Alçı tavan döşemesi yapın

Hız:

3-15m/dak(ayarlanabilir)

Laminat Tipi:

Tek taraflı veya çift taraflı

Güç:

100KW

Etkili laminasyon genişliği:

1300mm

Kart besleme ve bırakma modu:

Otomatik/manuel

Ağırlık:

20 ton

Gerilim::

380V. 50HZ

Ürün Adı:

Yüksek Kalite Fabrika Tedarikçisi Özelleştirilmiş Su Geçirmez Yüksek Kapasiteli Tam Otomatik Alçıpan

Anahtar kelime:

alçıpan laminasyon makinesi

Ambalaj bilgileri:

Standart Paket

Yetenek temini:

Yılda 10 Satır

Vurgulamak:

1300mm Effective Lamination Width Plasterboard Laminating Machine

3-15m/min Adjustable Speed Gypsum Ceiling Tile Production Line

Fully Automatic Operation Drywall Machine

Ürün Tanımı

High Quality Factory Supplier Customized Waterproof High-capacity Fully Automatic Plasterboard Drywall Machine

Our PVC gypsum ceiling tile production line creates environmentally friendly, lightweight ceiling boards with excellent fireproof, waterproof, and corrosion-resistant properties. The tiles feature a paper-faced gypsum core with PVC surface layer and aluminum foil backing, making them ideal for demanding environments.

Key Specifications

Attribute	Value
Application	Gypsum ceiling tile production
Speed	3-15m/min (adjustable)
Laminate type	Single side or double side
Power	100KW
Effective lamination width	1300mm
Board feeding/releasing mode	Automatic/manual
Weight	20T
Voltage	380V, 50HZ

Key Features

Daily Capacity: 7,000-12,000m² (based on 595×595×7mm boards)
Automation Level: Simple operation with high automation
Material Options: Gypsum board, PVC film, aluminum foil, and specialized adhesives
Customizable Dimensions: Available in 595×595mm, 600×600mm, 603×603mm, and 1200×600mm sizes
Surface Patterns: Fully customizable designs

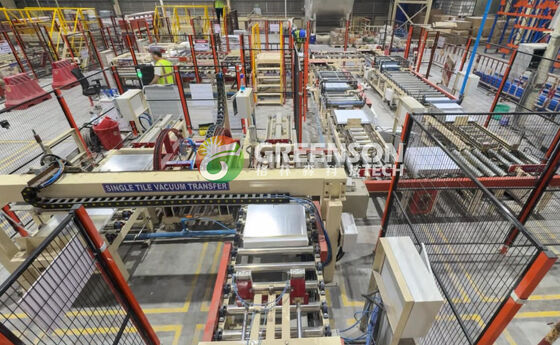

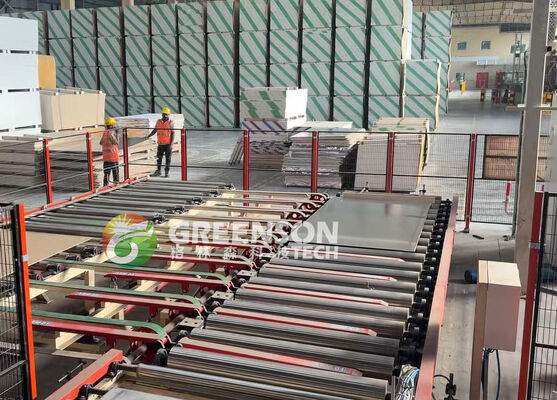

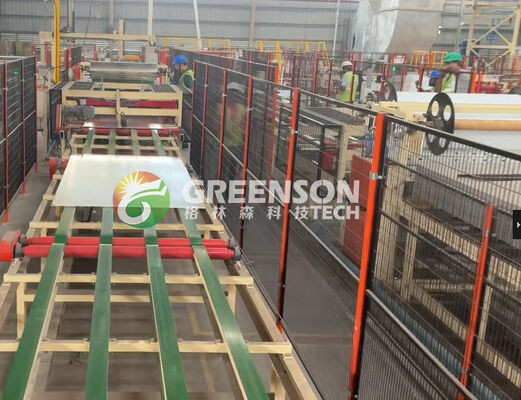

Production Process Flow

Automatic feeding → dust cleaning → PVC film/aluminum foil laminating → film cutting (manual/automatic) → conveying → vertical cutting (with dust collection) → horizontal cutting (with dust collection) → small board stacking → edge sealing → stretch packing → finished products stacking

Technical Parameters

Parameter	Specification
Sheet thickness	5-30mm
Laminating speed	15m/min
Speed adjustment	Frequency conversion synchronous speed regulating
Electrical control	PLC
Annual capacity	2-4 million m²
Compatible materials	PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

Comprehensive Support Services

Professional installation and debugging teams available
One-year equipment warranty with year-round spare parts supply
Continuous technical consultation and problem resolution
Assistance with import/export procedures and consignment
Production engineers available for operational support
Long-term cooperation opportunities
