PVC Laminated Fiber Cement Board Making Machine with 1300mm Effective Laminating, PLC System, and 2-6 Million Sq.m/Year Production Capacity

PVC Laminated Fiber Cement Board Making Machine with 1300mm Effective Laminating, PLC System, and 2-6 Million Sq.m/Year Production Capacity

Marka Adı:	LVJOE
Model Numarası:	1300fm
Moq:	1 satır
fiyat:	US $20000-200000
Ödeme Şartları:	L/C,T/T
Tedarik Yeteneği:	Yılda 10 Satır

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Hebei ， Çin (Anakara)

Sertifika:

ISO CE

Ürün Adı:

Pvc Lamine Fiber Çimento Levha Yapma Makinesi

Anahtar kelime:

tavan döşemeleri yapma makinesi

Bitmiş Tahta Tipi:

PVC lamine alçı tahtası

Etkili laminasyon:

1300mm

Elektrik kontrolü:

PLC Sistemi

üretim kapasitesi:

2-6 milyon m2/yıl

Satış sonrası servis:

Mühendisler Hizmete Mevcut

Tutkal Türü:

PVC filmi için su tutkal

Ambalaj bilgileri:

Standart Ambalaj

Yetenek temini:

Yılda 10 Satır

Vurgulamak:

1300mm Effective Laminating PVC Laminated Fiber Cement Board Making Machine

PLC System Gypsum Ceiling Tile Production Line

2-6 Million Sq.m/Year Production Capacity PVC Laminated Gypsum Board Machine

Ürün Tanımı

PVC Laminated Fiber Cement Board Making Machine

Product Overview

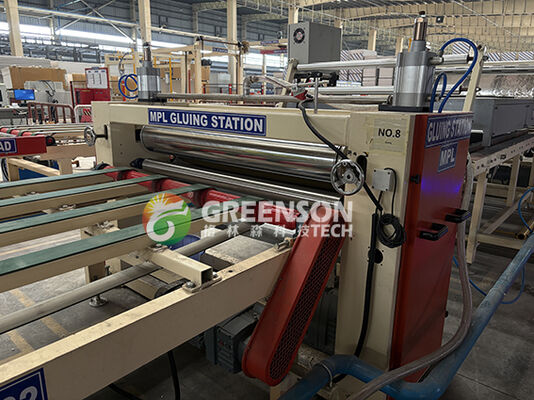

This advanced double-side laminating machine is engineered for producing PVC laminated gypsum boards used as ceiling tiles and partition wall panels. The fully automatic system handles fiber glass, paper, PVC film, and aluminum foil lamination with precision and efficiency.

Key Specifications

Attribute	Value
Finished board type	PVC laminated fiber cement board
Effective laminating width	1300mm
Electric control	PLC system
Production Capacity	2-6 million Sq.m/year
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Warranty	1 year
Glue type	Water Glue for PVC film

Main Components

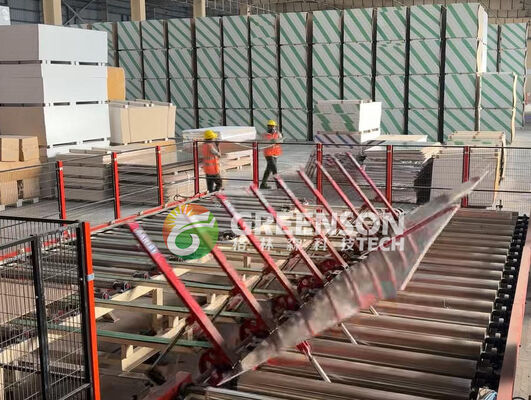

Automatic Gypsum Board Feeding Machine

The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll for PVC and aluminum film lamination.

Max. Load-bearing: 3000kg
Stroke: 1500mm
Height range: 620mm - 2000mm
Platform size: 1200×2400mm

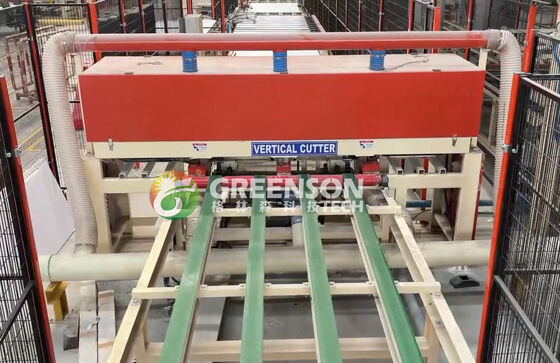

Automatic Cutting Machine

Features two cutting systems (vertical/longitudinal and horizontal) with dust collection, converting 1.2×2.4m boards into 603×603mm or 595×595mm tiles.

Cutting speed: 15m/min
Cutting knives: Vertical: 3 blades, Horizontal: 5 blades
Overall power: 17.15KW

Technical Specifications

Sheet thickness range: 5-30mm
Speed adjustment: Frequency conversion synchronous speed regulating
Annual capacity: 2-4 million Sq.m
Compatible film materials: PVC film, aluminum foils, decorative materials
Board materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
Stacking mode: 10 layers (4 packages/layer)
Lamination options: Double side (front and back simultaneously) or single side
Overall dimensions: 56000mm (L) × 9200mm (W)
