Mineral Rock Wool Production Line with 380V/50Hz Power Supply 1 Year Warranty and Class A1 Fire Resistance

Mineral Rock Wool Production Line with 380V/50Hz Power Supply 1 Year Warranty and Class A1 Fire Resistance

Marka Adı:	Greens
Model Numarası:	Kaya yünü üretim hattı
Moq:	1
fiyat:	US $2000000-4000000
Ödeme Şartları:	TT, LC

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Ürün adı:

Diğer Yapı Malzemelerinin Yapımı İçin Makineler Mineral Taş Yünü Üretim Hattı Fabrikası

Anahtar kelime:

mineral taş yün üretim hattı

Ana süreç:

Hammadde tedarik sistemi, eritme sistemi (kupola fırını), fiber şekillendirme sistemi, yün hücre ve

İşlenmemiş içerikler:

Bazalt 、 dolomit 、 cüruf

Kontrol Sistemi:

PLC'ler

Güç Kaynağı:

380V/50Hz

Kurulum:

Yurtdışındaki makinelere hizmet verebilecek mühendisler mevcut

Garanti:

1 yıl

Ambalaj bilgileri:

Ahşap sandık ambalajı

Vurgulamak:

380V/50Hz Mineral Rock Wool Production Line

1 Year Warranty Rock Wool Board Production Line

Class A1 Fire Resistance Mineral Wool Board Production Line

Ürün Tanımı

Mineral Rock Wool Production Line Factory

Production Process Overview

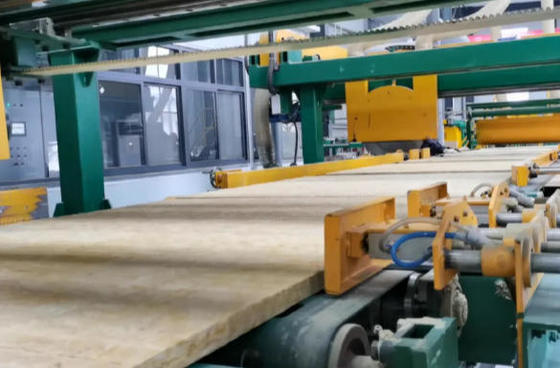

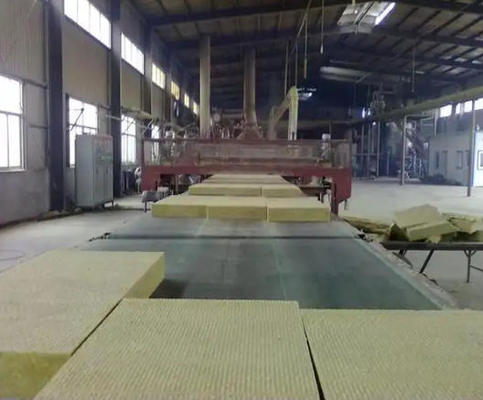

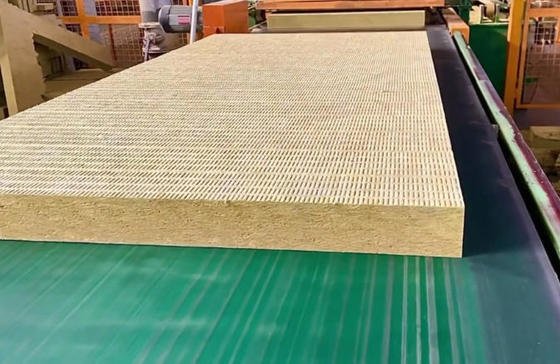

The rock wool production process begins with raw materials including basalt, dolomite, and binders. These materials are loaded into the hopper via elevator and melted in a furnace. The molten lava flows into a tank, where it's cooled and spun into fibers by a centrifuge. During fiber formation, binders are sprayed into the fiber molding chamber while negative pressure wind helps shape the fibers. The resulting fiber mat is transported via mesh belt to a pendulum cloth machine, then through a curing furnace where hot air solidifies the material. The final product undergoes precision cutting (both longitudinal and transverse) before packaging and storage.

Primary Applications

Rock wool is extensively used for fireproofing and sound absorption in partition/curtain walls, thermal insulation for roofs and retaining structures, geothermal systems, and industrial applications including kilns, ovens, and large tanks/vessels requiring both insulation and fire resistance.

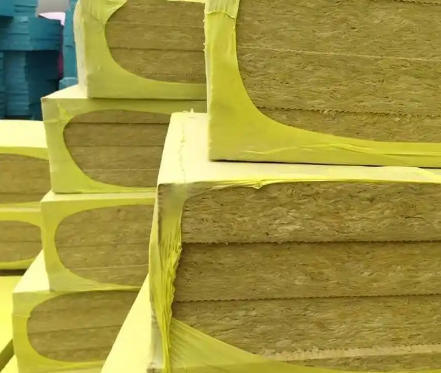

Product Specifications

Width: 1,000mm or 1,200mm
Length: 1,000mm (adjustable)
Thickness: 30-150mm
Density: 40-200kg/m³

Technical Parameters

Parameter	Value
Fiber diameter	5-8um
Shot content	6-8%
Max. application temperature	600°C
